Administrator

In the “Administrator” client application mode all the same functionality is available as in the “Operator” and “Developer” operating modes

Additionally, in the "Developer" mode, the GIS-ABP application allows you to create new data structures (files) and edit their properties, as well as execute built-in administrator commands.

Automated data loading is described in the Embedded Commands section.

Before you begin, copy the SAMPLEPLAN directory, which is located in the application directory (C:\Program Files (x86)\ABP\GIS-ABP\ SAMPLEPLAN), to the root directory of the drive, for example, drive C :. The directory C:\SAMPLEPLAN must have the current user full access permissions. This is necessary for editing data.

Launch the GIS-ABP Client Application.

Click the "Settings" button.

In the settings window that opens, set C: \ SAMPLEPLAN as the value of the DataFolder and RasterDataFolder parameters, the value of the ClientServerMode parameter is false, click OK.

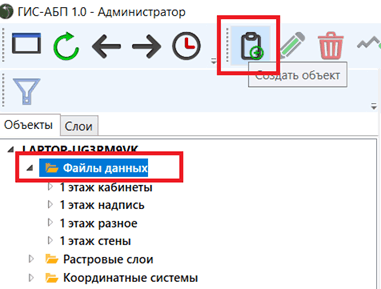

Select the "Data Files" folder in the tree, click the "Create Object" button.

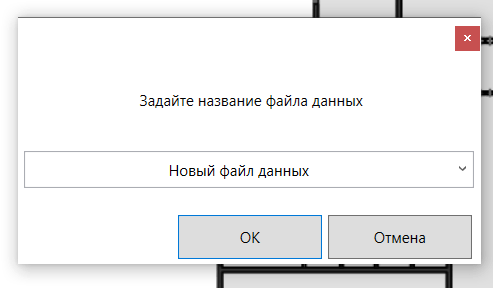

Input the name of the new data file (layer), click OK.

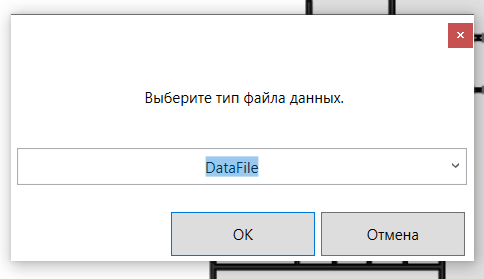

Select the file type DataFile, click OK.

Types of data files:

· DataFile - the file data is visible to all users, available for editing in the operating modes of the Developer and Administrator applications, the properties of the data file can be configured only in the operating mode of the Administrator application;

· Sketch - the file data is visible to all users, available for editing in the Operator, Developer and Administrator modes, the properties of the data file can be configured only in the Administrator application mode;

· Analytics – the data file and its data are visible only to the user who created it, the file data is editable in any application mode, the properties of the data file can be configured in any application mode, the user who created the data file of the Analytics type can delete it.

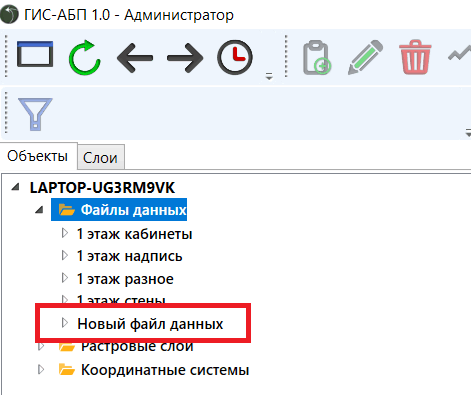

A new data file has appeared in the object tree.

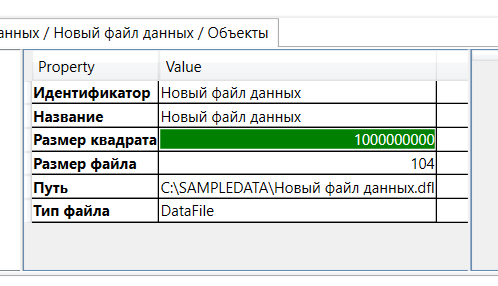

The attribute menu displays the properties of the created file. The size of the square is the cell size of the spatial index, calculated automatically by the system.

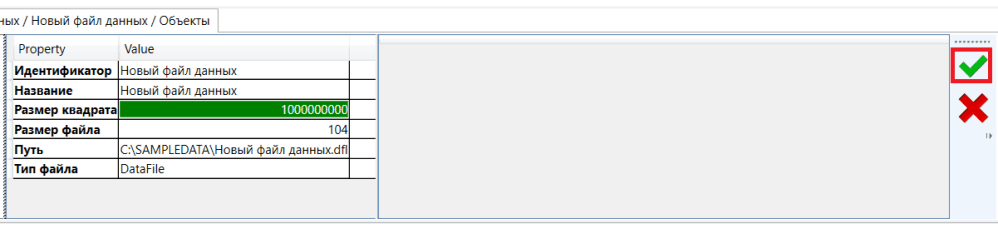

Click "Save."

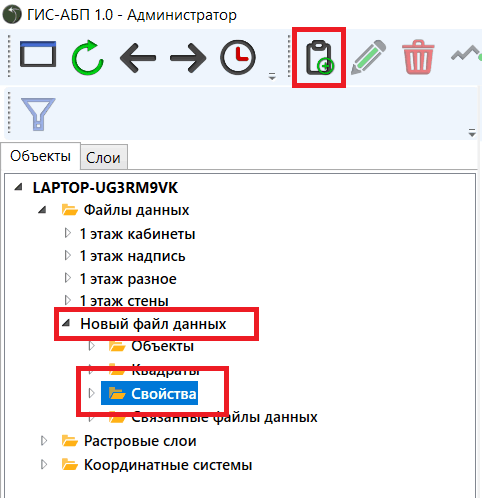

Select the “Properties” folder of the created data file, click “Create Object”.

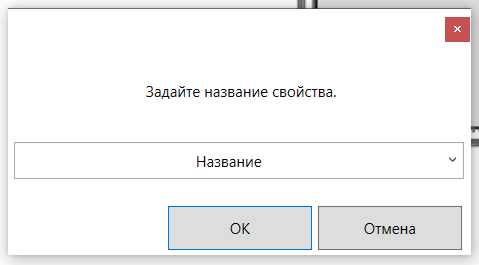

Input the name of the new property - “Name”, click OK.

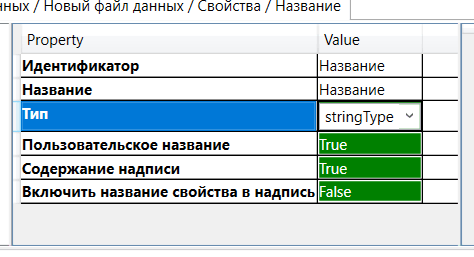

In the attribute menu, specify the parameters of the created property.

Type – stringType;

Username - True (displaying the value of the created property in the name of the object);

Label content – True (displaying the value of the created property in the label of the object).

Click Save.

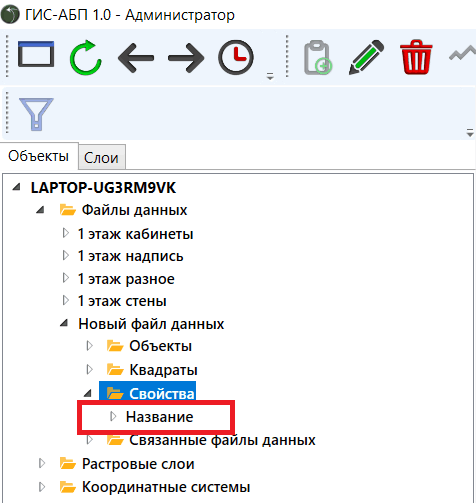

The "Title" property is displayed in the properties of the new data file.

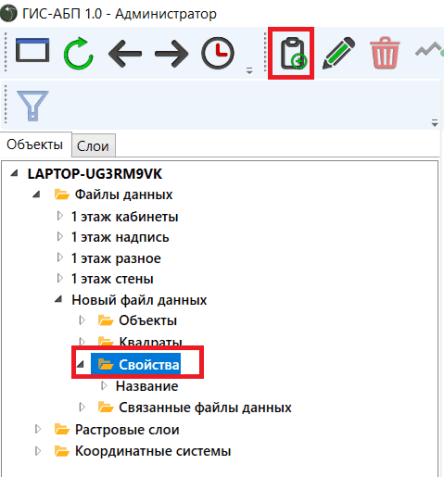

Select the "Properties" folder in the tree, click the "Create Object" button.

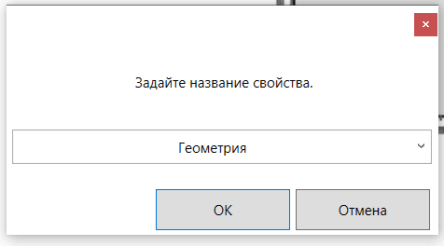

Indicate the name of the new property - "Geometry", click "OK".

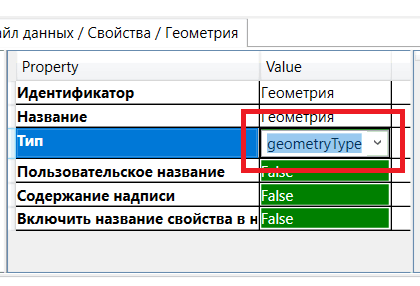

In the attribute menu, specify the value of the Type parameter - "geometryType", leave the values of the remaining parameters false.

Click Save.

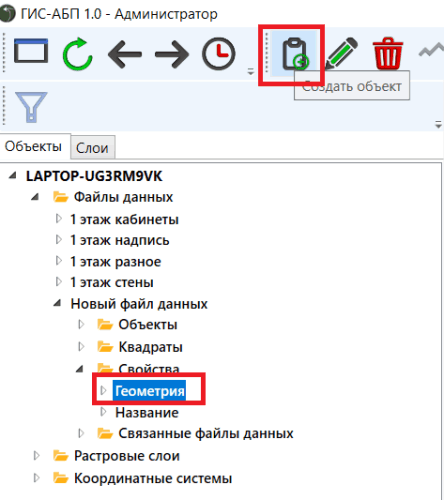

Select the "Geometry" property in the tree, click "Create Object".

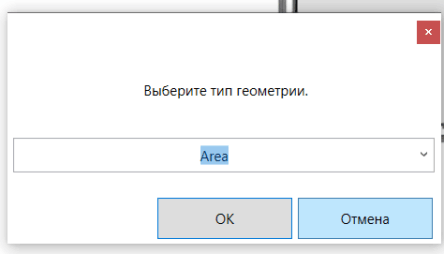

Select the geometry type “Area”, click OK (possible types are Point, Line, Area).

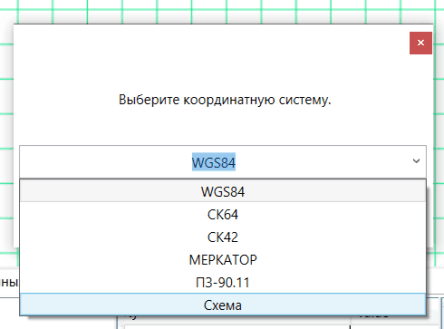

Select the type of coordinate system "Scheme", click OK

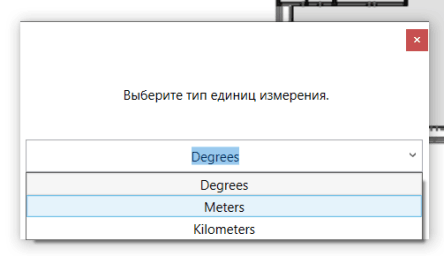

Select “Meters” units, click OK.

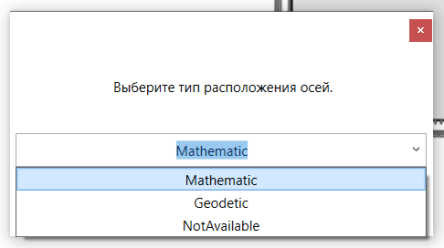

Select the “Mathematic” axis type, click OK (Mathematic - the X axis is horizontal, the Y axis is vertical, and the Geodetic is vice versa).

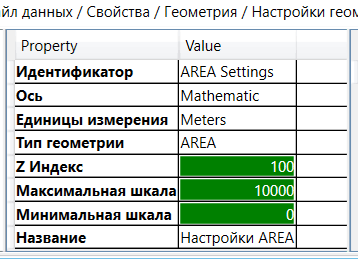

Set the geometry parameters, click "Save."

ZIndex - the position of the geometries of the current layer relative to the geometries of other layers;

Minimum scale, Maximum scale - scale filtering parameters that define the range of scale values at which this layer should be displayed.

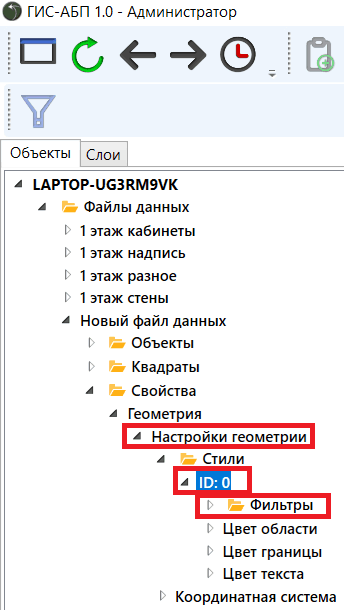

A default style was automatically created in the Geometry property style collection. If necessary, you can add additional styles and filters - this will allow you to display objects of a given layer with various styles selected by the filter, depending on the values of the properties of the objects

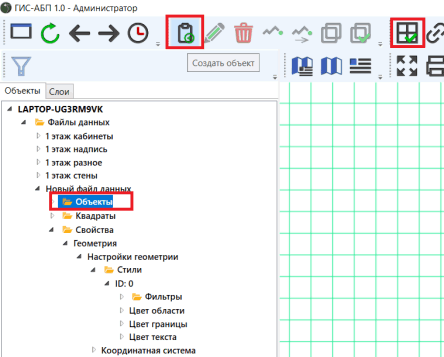

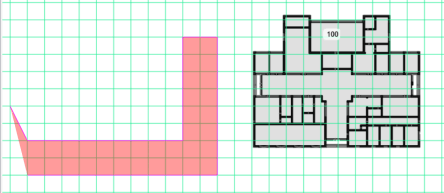

You can start drawing. Turn on the grid. Select the Objects folder of the created data layer (file), click Create Object.

Place the geometry of the object, click the right mouse button.

Fill in the value of the “Title” property, click “Save”.

Turn off the grid. The created object is displayed on the map.

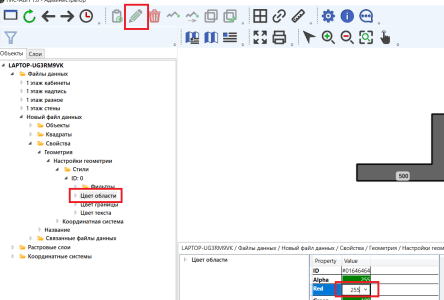

Edit the color of the area of the new layer.

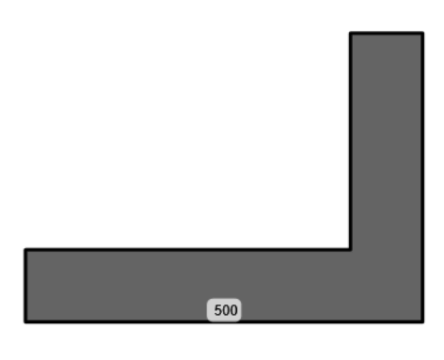

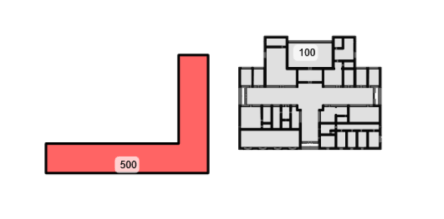

The color of the area has changed.

Also, in the “Administrator” application operating mode, you can configure the Linked data files to build a connectivity model.
